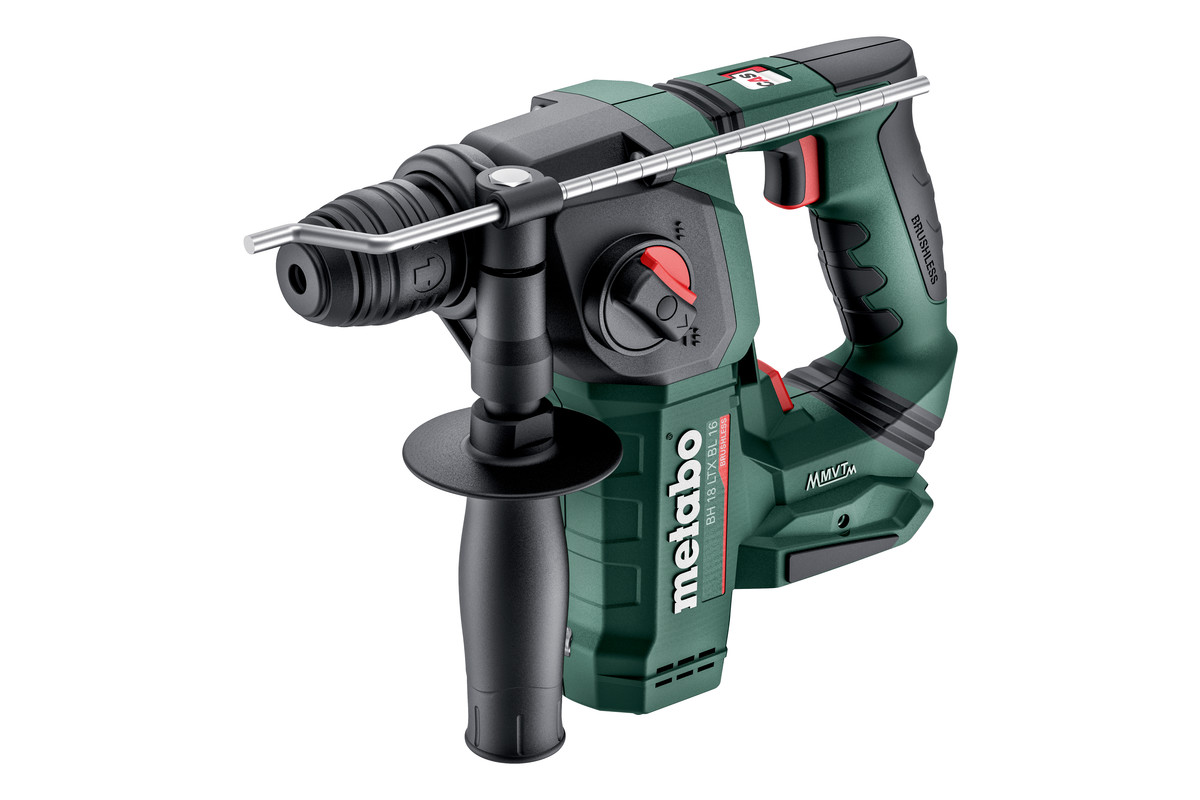

BH 18 LTX BL 16 (600324840) Cordless rotary hammer

18V; metaBOX 145 L

BH 18 LTX BL 16 (600324840) Cordless rotary hammer
Order no.: 600324840 EAN: 4061792191679
Battery voltage:
18 V
Max. single blow energy (EPTA):
1.3 J
Maximum impact rate:
5250 bpm
Drill-Ø concrete with hammer drills:
16 mm
Bit retainer:
SDS-plus
  • Very lightweight, compact cordless hammer with brushless motor for low-fatigue drilling in any working position
  • Maximum drill performance, efficiency and service life thanks to brushless technology and high-performance hammer action
  • Rotary hammer with 2 functions: hammer drilling and drilling
  • Metabo VibraTech (MVT): integrated damping system to reduce vibrations in order to protect the user's health
  • LED work light for optimum view of the drilling site
more product information
Manual Spare-parts list
  • Very lightweight, compact cordless hammer with brushless motor for low-fatigue drilling in any working position
  • Maximum drill performance, efficiency and service life thanks to brushless technology and high-performance hammer action
  • Rotary hammer with 2 functions: hammer drilling and drilling
  • Metabo VibraTech (MVT): integrated damping system to reduce vibrations in order to protect the user's health
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
  • Electronic safety shutdown of the motor for safe working in case the tool stops unexpectedly
  • LED work light for optimum view of the drilling site
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Battery voltage
18 V
Max. single blow energy (EPTA)
1.3 J
Maximum impact rate
5250 bpm
Drill-Ø concrete with hammer drills
16 mm
Drill-Ø masonry with core bits
68 mm
Drill Ø steel
13 mm
Drill-Ø soft wood
20 mm
No-load speed
0 - 730 rpm
Bit retainer
SDS-plus
Weight without battery pack
1.6 kg
Weight with battery pack
2 kg
Vibration
Hammer drilling concrete
12.7 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
87 dB(A)
Sound power level (LwA)
98 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Side handle
  • Drilling depth guide
  • metaBOX 145 L
  • without battery pack, without charger
