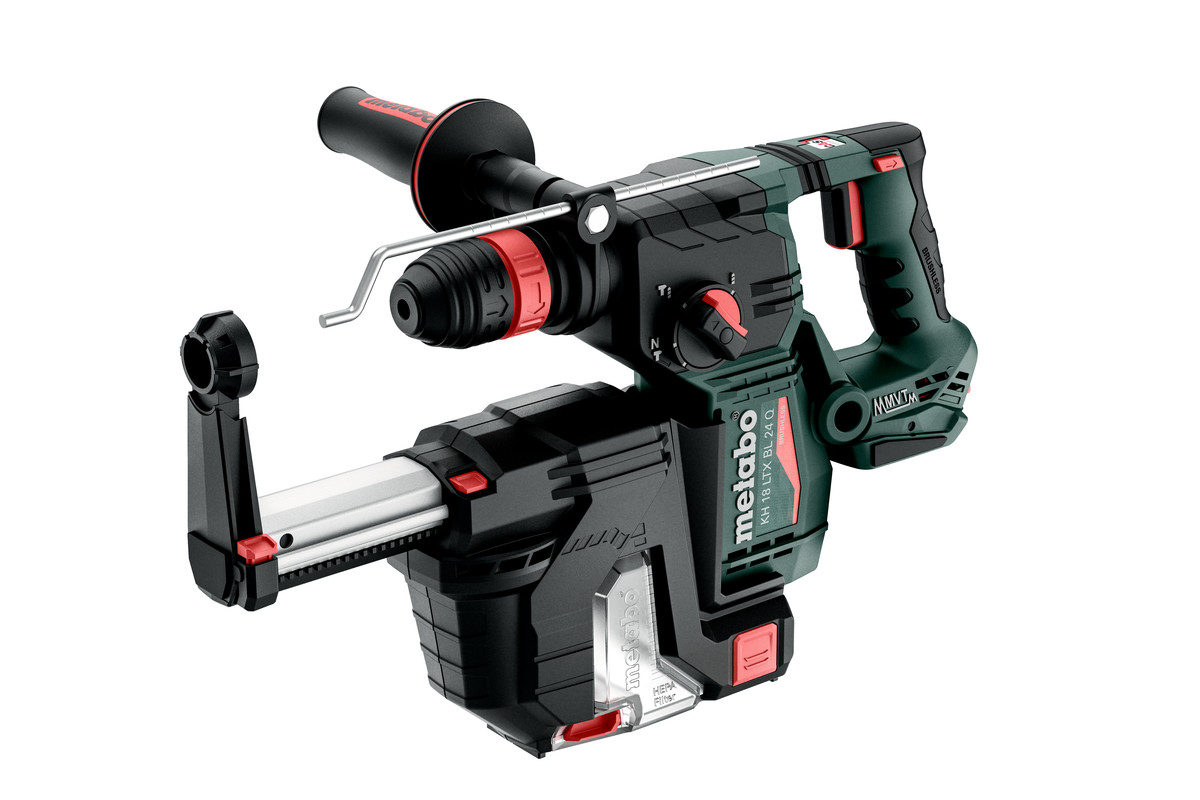

KH 18 LTX BL 24 Q Set ISA (601714900) Cordless combination hammer
18V; metaBOX 185 XL; with integrated dust extraction and Metabo Quick chuck
Order no.: 601714900
EAN: 4061792218567
Battery voltage:
18 V
Max. single blow energy (EPTA):
2.2 J
Maximum impact rate:
4750 bpm
Drill-Ø concrete with hammer drills:
24 mm
Bit retainer:
SDS-plus
- Extremely light and compact cordless hammer with integrated extraction interface
- Maximum drill performance, efficiency and service life thanks to brushless technology and high-performance hammer action
- Metabo VibraTech (MVT): integrated damping system to reduce vibrations in order to protect the user's health
- Double safety when the drill bit jams: No kick-back thanks to the mechanic decoupling plus ultra-fast sensor-controlled shutdown
- Extremely light and compact cordless hammer with integrated extraction interface
- Maximum drill performance, efficiency and service life thanks to brushless technology and high-performance hammer action
- Dust-free drilling with compact dust extraction ISA 24
- Combination hammer with 3 functions: hammer drilling, drilling and chiselling
- Metabo VibraTech (MVT): integrated damping system to reduce vibrations in order to protect the user's health
- Metabo Quick: quick change between SDS Plus hammer chuck and keyless chuck for many different applications
- Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
- Electronic soft start for precise spot-drilling
- Double safety when the drill bit jams: No kick-back thanks to the mechanic decoupling plus ultra-fast sensor-controlled shutdown
- LED work light for optimum view of the drilling site
- Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Battery voltage
18 V
Max. single blow energy (EPTA)
2.2 J
Maximum impact rate
4750 bpm
Drill-Ø concrete with hammer drills
24 mm
Drill-Ø masonry with core bits
82 mm
Drill Ø steel
13 mm
Drill-Ø soft wood
30 mm
No-load speed
0 - 1280 rpm
Bit retainer
SDS-plus
Weight without battery pack
4.1 kg
Vibration
Hammer drilling concrete
13.4 m/s²
Uncertainty of measurement K
1.5 m/s²
Chiseling
9.1 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
90 dB(A)
Sound power level (LwA)
101 dB(A)
Uncertainty of measurement K
3 dB(A)
- Integrated dust extraction ISA 24
- Replacement extraction head
- Hammer chuck for tools with SDS-plus shank end
- Keyless chuck for tools with cylindrical shank
- rubber-coated side handle
- Drilling depth guide
- metaBOX 185 XL
- without battery pack, without charger
Full service - Complete protection for full cost control
More information at www.metabo.com/services
| Full service price group |
FS4 |
| One-time cost for 36 months (RRP with VAT) |
109.00 £ |
The full service benefits:
- All repairs within 3 years are fully covered, even repairs of wear and tear
- Free theft protection
This Full Service Package provides all-round protection thanks to fairly calculated service flat rates.
When purchasing the machine buy a full service code from your dealer.
Using this code you can register your machine for the full service within 4 weeks from the date of purchase.
More information at www.metabo.com/services
