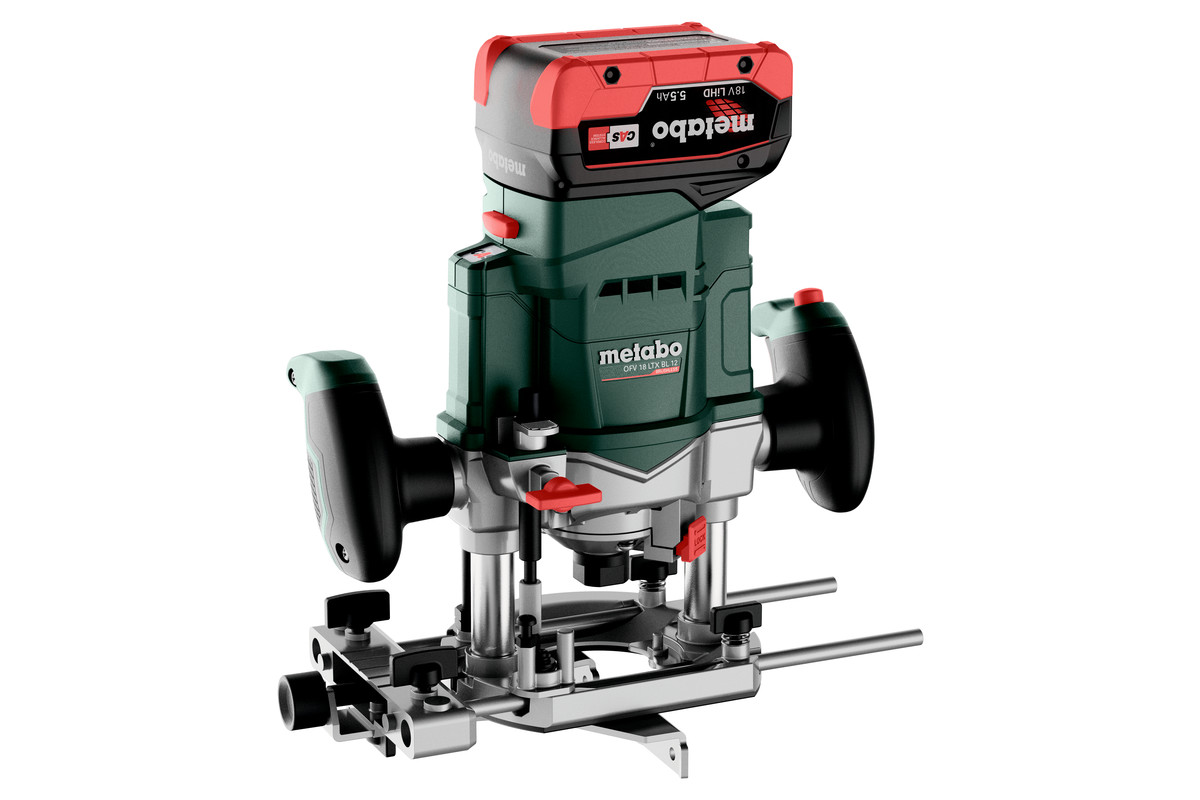

OFV 18 LTX BL 12 (601743660) Cordless router

18V 2x5.5Ah LiHD; Charger ASC 145 (220-240 V / 50 - 60 Hz); metaBOX 340

Badge New EN
Badge New EN
OFV 18 LTX BL 12 (601743660) Cordless router
Order no.: 601743660 EAN: 4061792257283
Battery voltage:
18 V
Maximum stroke height:
50
No-load speed:
11000 - 25000 rpm
Collet chuck bore:
6 / 8 / 12 mm / 1/2 / 1/4 " mm
  • Powerful cordless router featuring a substantial 50 mm routing depth, suitable for a wide range of routing applications.
  • Powerful Brushless motor for excellent cutting speed in wood and woodlike materials
  • Millimeter-precise adjustment of the cutting depth utilizing a three-step stop mechanism and additional fine-tuning facilitated by the calibrated scale.
  • Variable speed control for speeds adapted to the materials for any application
more product information
Manual Spare-parts list
  • Powerful cordless router featuring a substantial 50 mm routing depth, suitable for a wide range of routing applications.
  • Powerful Brushless motor for excellent cutting speed in wood and woodlike materials
  • Millimeter-precise adjustment of the cutting depth utilizing a three-step stop mechanism and additional fine-tuning facilitated by the calibrated scale.
  • Robust and torsion-resistant 2-column guide for highest precision
  • Variable speed control for speeds adapted to the materials for any application
  • Hardened and ground interchangeable collet chuck for precise concentricity of router bits
  • Spindle lock for easy router bit change
  • Restart protection: prevents unintentional start-up after power supply interruption
  • Overload protection: protects the motor from overheating
  • Equipped for many applications: Parallel guide / rip fence, template follower and suction adapter
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Type of battery pack
LiHD
Battery voltage
18 V
Battery pack capacity
2 x 5.5 Ah
Maximum stroke height
50
No-load speed
11000 - 25000 rpm
Collet chuck bore
6 / 8 / 12 mm / 1/2 / 1/4 " mm
Weight without battery pack
2900 kg
Weight with battery pack
3900 kg
Vibration
Routing MDF
4.8 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
94 dB(A)
Sound power level (LwA)
102 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Suction Adapter
  • Collet 12 mm
  • Collet 8 mm
  • Reducer 12 mm to 6 mm
  • Open-jawed spanner
  • 2 LiHD Battery packs (18 V/5.5 Ah)
  • Quick charger ASC 145 "AIR COOLED"
  • metaBOX 340
  • Parallel Guide / Rip Fence
  • Template Follower
