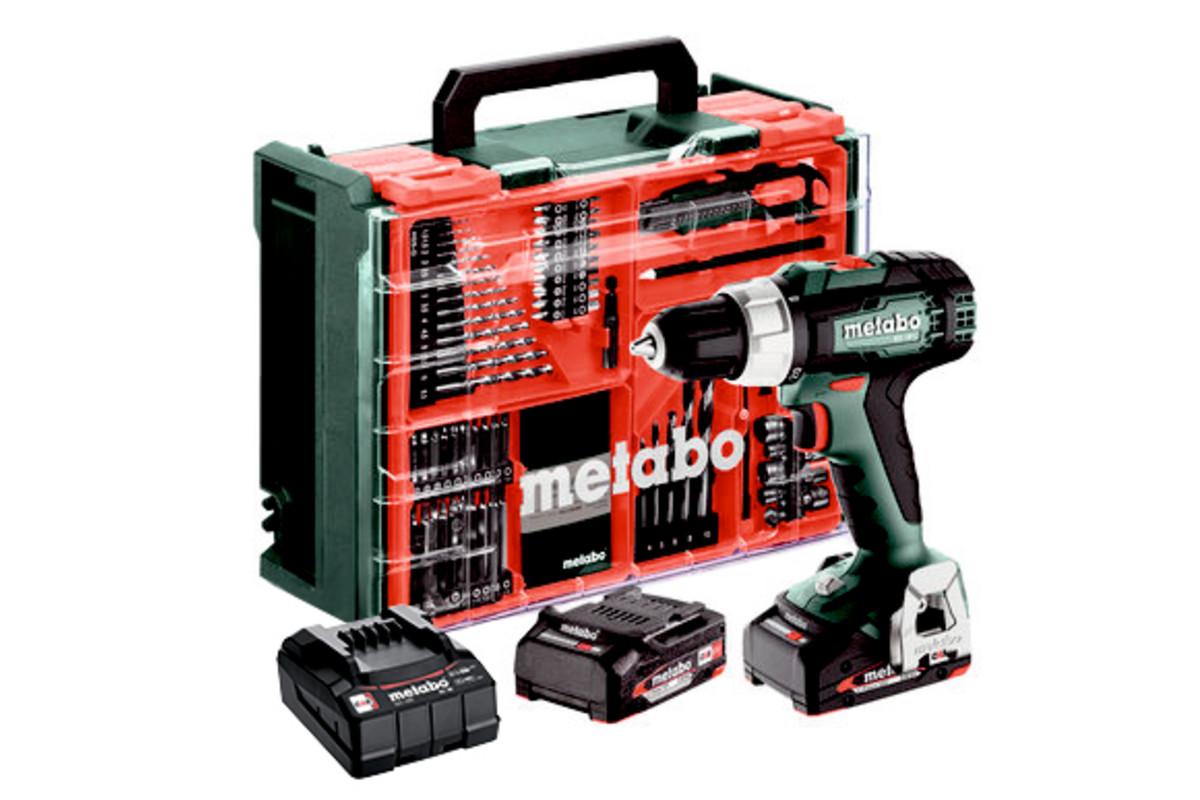

BS 18 L Set (614051710) Cordless drill / screwdriver

18V 2x2Ah LiPOWER; Charger SC 36 (220-240 V / -); Plastic Carry Case; with 74-piece mobile workshop

Badge New EN
Badge New EN
BS 18 L Set (614051710) Cordless drill / screwdriver
Order no.: 614051710 EAN: 4061792252219
Battery voltage:
18 V
Maximum torque, soft:
26 Nm / 230 in-lbs
Maximum torque, hard:
60 Nm / 531 in-lbs
Drill Ø steel:
13 mm / 1/2 "
Drill-Ø soft wood:
36 mm / 1 13/32 "
  • Reliable, powerful drill/screwdriver for all standard drilling and screwdriving applications
  • Mobile workshop (74 pieces): 5 wood drill bits (4/5/6/8/10mm), 14 HSS drill bits (1.5/1.5/2/2/2.5/3/3/3.5/4/4.5/5/5.5/6/6.5mm), 20 screwdriver bits length 25mm (PH1/PH2/PH2/PH3/PZ1/PZ2/PZ2/PZ2/PZ3/H3/H4/H5/H6/T15/T20/T25/T30/S4/S5/S6), 10 screwdriver bits length 50mm (S4/S5/S6/PZ1/PZ2/PZ3/T15/T20/T25/T30), 10 screwdriver bits length 75mm (S4/S5/S6/PZ1/PZ2/PZ3/T15/T20/T25/T30), bit holder (60mm), 8 socket wrench (6/7/8/9/10/11/12/13mm), countersinks (12.7mm), centering pin (5x100mm), cutter knife with 2 spare blades, measuring tape (3m/10"), pencil (HB), notebook
  • Overload protection: protects the motor from overheating
  • Integrated LED work light with afterglow function for optimal brightness in the work area
  • With handy belt hook and bit case which can be fixed either on the right or left side
more product information
Manual Spare-parts list
  • Reliable, powerful drill/screwdriver for all standard drilling and screwdriving applications
  • Mobile workshop (74 pieces): 5 wood drill bits (4/5/6/8/10mm), 14 HSS drill bits (1.5/1.5/2/2/2.5/3/3/3.5/4/4.5/5/5.5/6/6.5mm), 20 screwdriver bits length 25mm (PH1/PH2/PH2/PH3/PZ1/PZ2/PZ2/PZ2/PZ3/H3/H4/H5/H6/T15/T20/T25/T30/S4/S5/S6), 10 screwdriver bits length 50mm (S4/S5/S6/PZ1/PZ2/PZ3/T15/T20/T25/T30), 10 screwdriver bits length 75mm (S4/S5/S6/PZ1/PZ2/PZ3/T15/T20/T25/T30), bit holder (60mm), 8 socket wrench (6/7/8/9/10/11/12/13mm), countersinks (12.7mm), centering pin (5x100mm), cutter knife with 2 spare blades, measuring tape (3m/10"), pencil (HB), notebook
  • Overload protection: protects the motor from overheating
  • Integrated LED work light with afterglow function for optimal brightness in the work area
  • With handy belt hook and bit case which can be fixed either on the right or left side
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Type of battery pack
LiPOWER
Battery voltage
18 V
Battery pack capacity
2 x 2 Ah
Maximum torque, soft
26 Nm / 230 in-lbs
Maximum torque, hard
60 Nm / 531 in-lbs
Adjustable torque
0.7 - 5.5 Nm // 6.2 - 48.7 in-lbs
Drill Ø steel
13 mm / 1/2 "
Drill-Ø soft wood
36 mm / 1 13/32 "
No-load speeds
0 - 450 / 0 - 1850 rpm
Chuck capacity
1.5 - 13 mm // 1/16 - 1/2 "
Weight without battery pack
1.2 kg / 2.6 lbs
Weight with battery pack
1.6 kg / 3.5 lbs
Vibration
Drilling in metal
1.7 m/s²
Uncertainty of measurement K
1.5 m/s²
Screwdriving without impact
0.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
78 dB(A)
Sound power level (LwA)
86 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Keyless chuck
  • Charger SC 36
  • Plastic carry case
  • Accessory set
  • Belt hook and bit case
  • 2 LiPOWER Battery Packs (18 V/2.0 Ah)
